Model
|
BX-80N
|
|
Detection Method
|
Passive Infrared
|
|

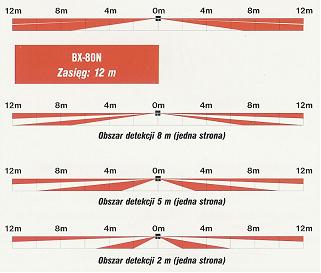

Coverage
|
24m (80ft.) (12m [40ft.] on each side)
|
|
Detection Zones
|
4 zones (2 zones on each side)
|
|
Sensitivity
|
1.6°C at 0.6m/sec.(3°F at 2ft./sec.)
|
|
Detectable Speed
|
0.3 - 2.0m/sec. (1 - 6.7ft./sec.)
|
|
Power Input
|
10 ~ 28VDC
|
|
Current Draw
|
Normal 28mA Max. 38mA
|
|
Alarm Period
|
2.0 ą 1.0 sec.
|
|
Relay Output
|
2 Relay Outputs N.O. and N.C. 28 VDC
0.2A (Max.) each
|
|
Tamper Switch
|
N.C. Opens when cover removed
|
|
Area Check Mode
|
ON or OFF
|
|
Warm-up Period
|
Approx. 45 sec. (LED blinks)
|
|
Volume of Audible Alarm
|
Approx. 70dB (at 1 meter distance)
|
|
LED Indicator
|
LED is blinking during warm-up period,
Alarm condition
|
|
Operating Temperature
|
-20°C to +50°C (-4°F to +122°F)
|
|
Environment Humidity
|
95% (Max.)
|
|
RF Interference
|
No Alarm 20V/m
|
|
Mounting
|
Wall (Indoor/Outdoor)
|
|
Mounting Height
|
0.8 - 1.2m (2.7 - 4ft.)
|
|
Weight
|
400g (14oz)
|
|
IP Rating
|
IP55
|
|
Accessories
|
Mount screw (M4 x 20) x 2
|
